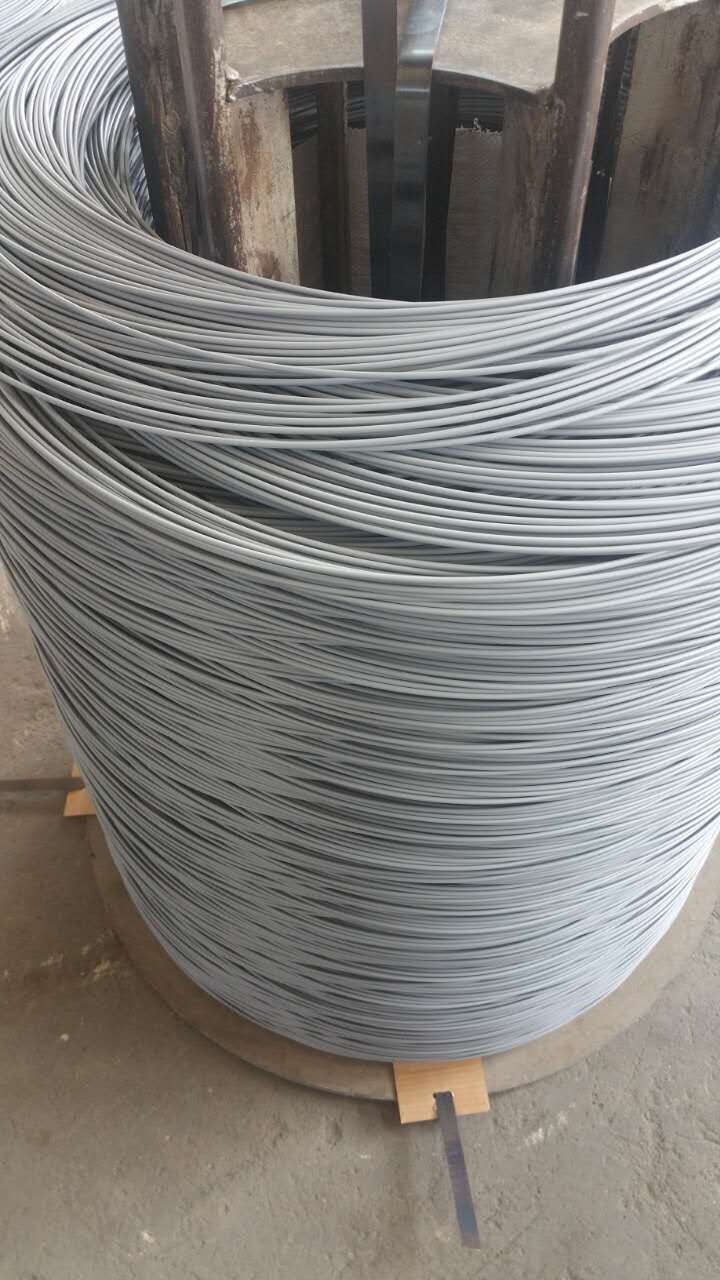

PVC Coated Wire
Inner diameter Range: 0.5-5.00 mm
Outside diameter range:0.6mm-5.50mm
Inner wire Surface : Black Annealed wire; Electro Galvanized wire; Hot Dipped Galvanized wire, 5% Al 95% Zn Galfan Coated Wire . 10% Al 90% ZN Galfan coated wire .
PVC Coated Color : Grey , Green ,Blue ,Black , according RAL Color sheet .
Galvanised Wire Working Specifications
Given that galvanized wire is classified according to the amount of zinc coating, the following table outlines the difference between tensile strength.
Products Description:
|
Inner Dia. Range(mm) |
Outer Dia. Range(mm) |
Tensile (Mpa) |
Elongation (%) |
Zinc coating(g/m2) |
Packing Size |
Weight/Package |
|
2.00-4.00 |
as request |
390-500 |
10 |
black Annealed; Zinc Aluminum Coated |
Coil |
1kg/coil-800kg/coil |
|
600-900 |
4 |
|||||
|
1000-1400 |
4 |
Diameter Properties
Standard Galvanized Wire is manufactured to comply with the following diameter tolerances:
|
Nominal Wire Diameter |
Tolerance (mm) |
|
over 0.50mm up to incl. 2.00mm over 2.00mm up to and incl. 3.00mm over 3.00mm up to and incl. 4.00mm |
+-0.02 +/-0.02 +/-0.03 |
Steel Chemistry
A combination of steel grades is used and heat treatment processes to manufacture soft, medium and hard tensile grades. The table below is indicative only of steel chemistries used.
|
Tensile Grade |
% Carbon |
% Phosphorus |
% Manganese |
% Silicon |
% Sulphur |
|
Soft |
0.05~0.15 |
0.035 |
0.5 ~1.00 |
0.10~0.34 |
0.041 |
|
Standard |
0.45~0.50 |
0.032 |
0.5 ~1.00 |
0.10~0.34 |
0.041 |
|
High |
0.59~0.63 |
0.035 |
0.5 ~1.10 |
0.10~0.35 |
0.045 |
|
Extra-High |
0.65~0.83 |
0.035 |
0.5 ~1.10 |
0.10~0.35 |
0.045 |
Quality Control:
We use total quality control system. Every pieces of the raw material; semi-finished products and finished products are tested and recorded in file. The tracking record is used from final products to the very first beginning raw material steel factories.
Third Part like SGS is available for test control before shipment
Packing:
1) All the products are packed with seaworthy packing.
2) Customer’s special requirement for packing can be satisfied.
3) Air freight; sea freight and truck freight are all available.
